Rualbanlo elevator .
Home-Use disabled elevator, G-type barrier-free lifting platform tia hriat bawk hi vertical lifting platform a ni a, hydraulic emaw screw motor emaw hmanga khalh a ni. Leiah direct-a dah a nih avangin installation awlsam tak leh aesthetically pleasing design a awm bawk. European leh American standard-a siam niin, he platform hian noise hniam leh smooth motion hmangin hna a thawk a, multi-level safety protections a nei bawk. Passageway mamawh ang zela 90℃emaw 180℃entry/exit configuration emaw a support a ni.
He hmanruaah hian safety lever, floor safety net, leh venhimna hmanrua dangte a awm a, hei hian a nghet leh a himna tur a siamsak a ni. A pawn lam chu electrostatically sprayed aluminum alloy hmanga siam a ni a, tui laka invenna, rust venna, leh hmel mawi tak a ni. JG50 "Urban Road and Building Barrier-free Design Code" leh GB24805{{8}2009 "Vertical Lifting Platform for People of People Uf Mobility Impairments" te zawmtu platform hi -40℃atanga 50℃thlenga temperature-ah rintlak takin a thawk a ni. Khawtlang center, damdawi in, sikul, hotel, leh vantlang hmun dang, barrier-free access ngai tan a tha hle.

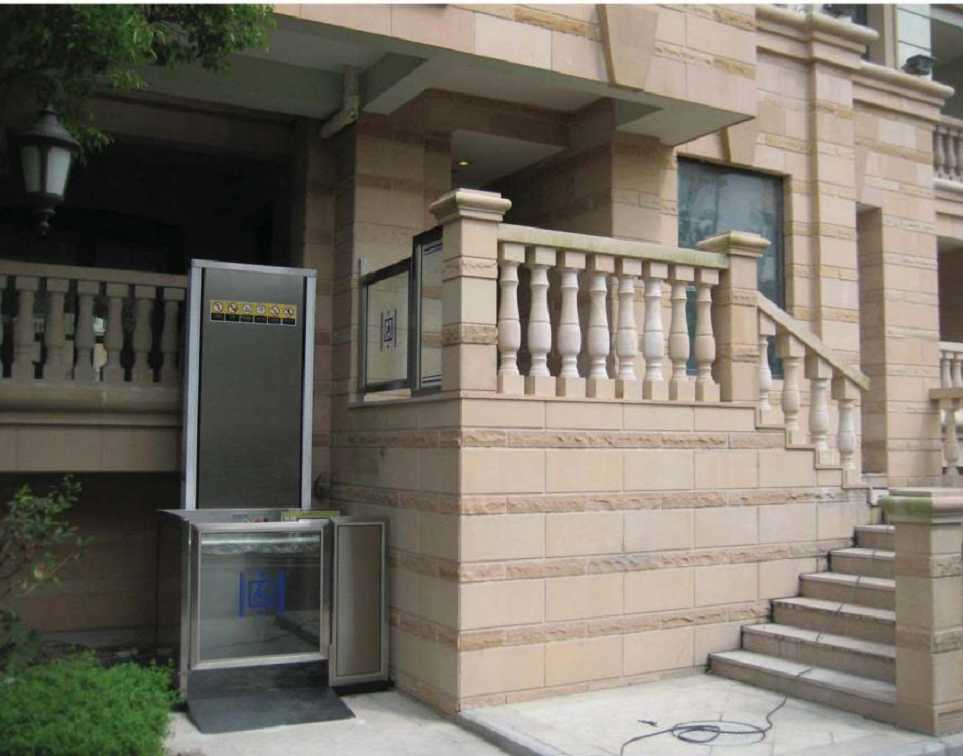

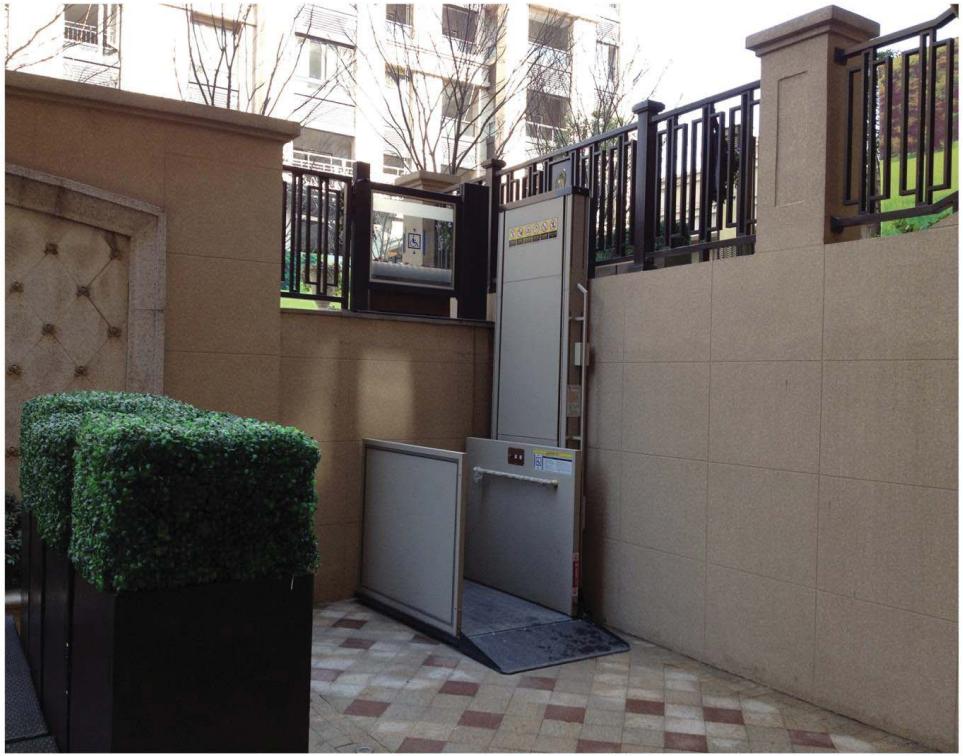

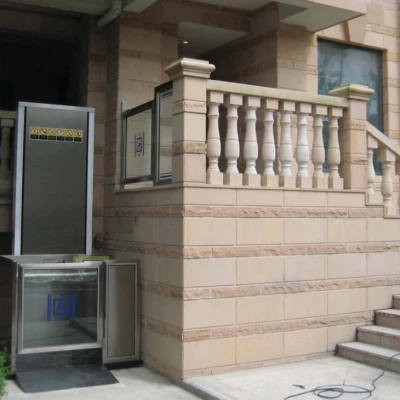

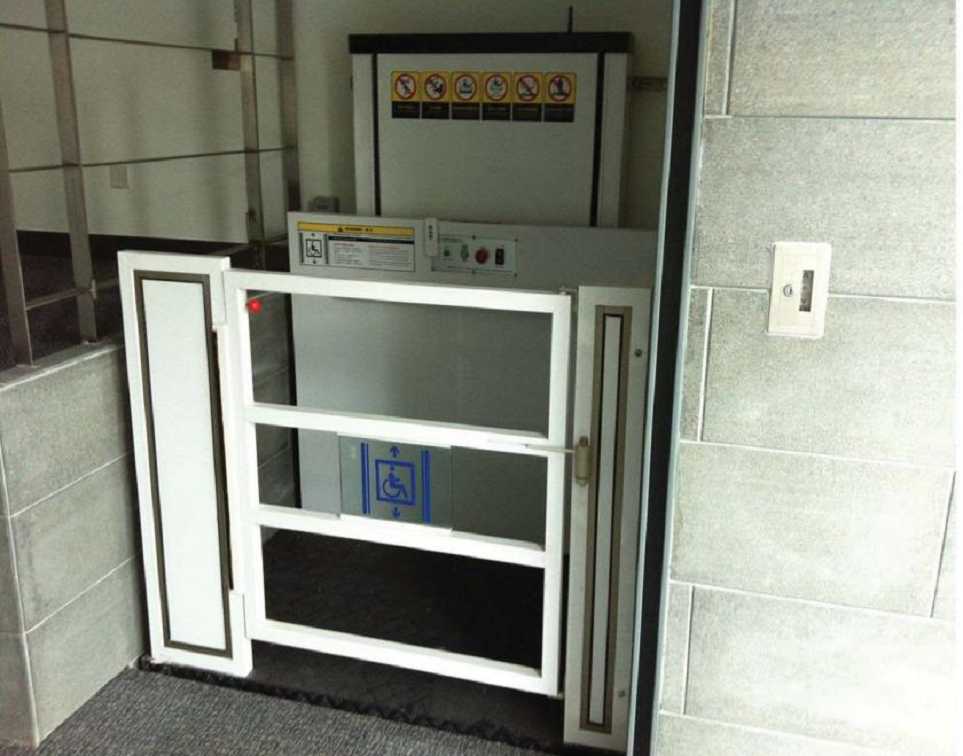

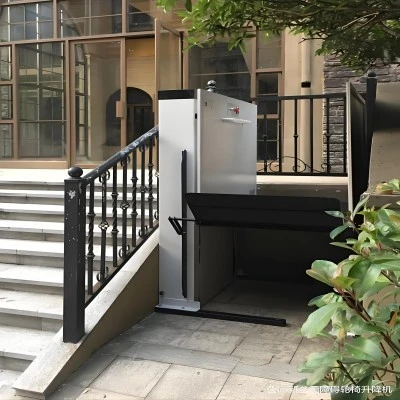

Product Case 1000 a ni.
Technical parameters leh configuration tha tak tak te .
|
A hnuai lam plate size: |
1426mm (a sei) * 998mm (a zau zawng) |
|
|
A pum puia a size: |
1426mm*1350mm* A san zawng a sang 1800+700 |
|
|
Lift sang ber: |
Max 1500 mm (lei atanga loft platform atanga lo awm) a ni. |
|
|
A hnuai lam plate a san zawng tlem ber: |
80mm (lei chunga leiah) . |
|
|
Entry leh exit dan tur: |
180.(Optional, site mamawh dan azirin) |
|
|
Speed of ascent tih hi a ni. |
70mm/s a ni. |
|
|
Load sang ber: |
250kg a ni. |
|
|
Control source: 1.1. |
220V/ac a ni. |
|
|
Motor chakna: 1.1. |
1.1kW,220V/ac a ni. |
|
|
Power source: 1.1. |
220V/50Hz/25A ah hian a awm a. |
|
|
Hydraulic host a ni a, a man pawh a to hle. |
Hydraulic system kimchang . |
|
|
Driving system: 1.1. |
Hydraulic pressure a awm em? |
|
|
Run mode: |
Pulsed control / emaw automatic emaw a ni thei bawk. |
|
|
Lift control: 1.1. |
"Lever reset switch hnathawh dan" hmang rawh. |
|
|
Overload laka invenna: |
Overcurrent relay control . |
|
|
Shield form: 1.1. |
90℃emaw 180℃emaw , inthlak danglamna configuration . |
|
|
Lift platform floor: |
Aluminum Alloy Pattern Anti-slip board (static electrostatic spraying) a awm bawk. |
|
|
Machine hmanga khuh: 1.1. |
Electrostatic spraying (internal steel structure support) a awm bawk. |
|
|
Case Panel: |
Aluminum alloy plate (Electrostatic spraying) a awm bawk. |
|
|
Safety rocker hnathawh angle: |
75℃a ni. |
|
|
Hnathawhna hmun: 1.1. |
Indoor leh outdoor hman atan a tha |
|
|
Hnathawh tur lumna: 1.1. |
Temperature-10℃60℃a ni. |
|
|
Install dan tur: |
No foundation pit installation, concrete ground-a direct-a fixed (bottom pit nei lo pawn lam application-ah chuan platform hnuaia concrete ground chu a chhehvel lei aiin a hniam tur a ni lo) |
|
|
Pawn lam control hmanrua: |
Outgoing box chu hmanrua chunglam leh hnuai lam hnaih ber bang chungah dah a ni a, a nih loh leh remote control hman theih a ni bawk . |
|
|
Emergency tihtawp: 1.1. |
Machine hnathawh dan tur control turin emergency button kha hmet la. |
|
|
Kut hnathawh dan: |
Manual hydraulic valve hawn emaw, screw rod chu kut hmanga rotate emaw a nih chuan lifting base plate chu kut hmanga tihhniam theih a ni. |
|
|
Hriselna hmanrua: 1.1. |
Safety interlocking: 1.1. |
Lifting platform hian eng hna pangngai lo pawh hnuaiah a thawk thei lo. |
|
Safety touch panel: |
Safety touch plate hian operation laiin harsatna a tawk a nih chuan operation chu a tawp nghal ang. |
|
|
Emergency atanga lo chhuak: |
Power emaw, power leh malfunction emaw a awm loh chuan manual lowering device. |
|
|
Hriselna atana rocker: |
A tho a, a sway bawk. |
|
|
Heng thil siamte hi kum 2009-a National Quality Supervision and Inspection Bureau tihchhuah angin khauh taka kalpui a ni. 《Mobility lama harsatna nei te tan vertical lifting platforms Express |
||
